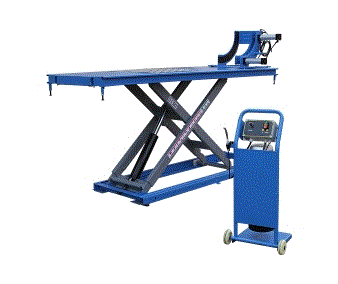

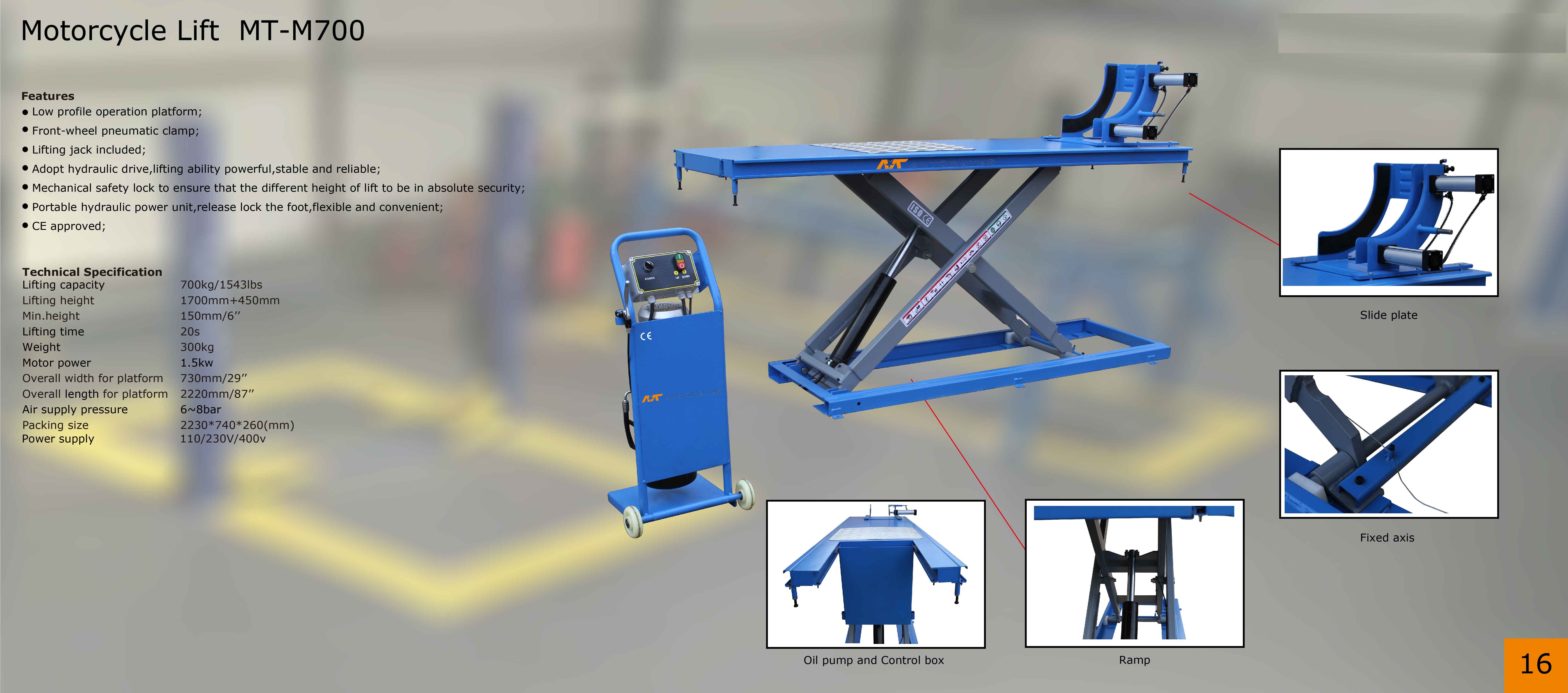

  1） Low profile operation platform.

  2） Front-wheel pneumatic clamp.

  3） Lifting jack included.

  4）Adopt hydraulic drive,lifting ability powerful,stable and reliable.

  5）Mechanical safety lock to ensure that the different height of lift to be in absolute security.

  6） Portable hydraulic power unit,release lock the foot,flexible and convenient.

  7）CE approved.

  Lifting capacity

  700kg/1543lbs

  Max lifting height

  1700mm+450mm

  Min height

  150mm/6’’

  Lifting time

   20s

  Overall length for platform

   2220mm/87’’

  Weight

  300kg

  Overall width for platform

   730mm/29’’

  Motor power

   1.5kw

  Air supply pressure

    6~8bar

  Package size

    2230*740*260mm
