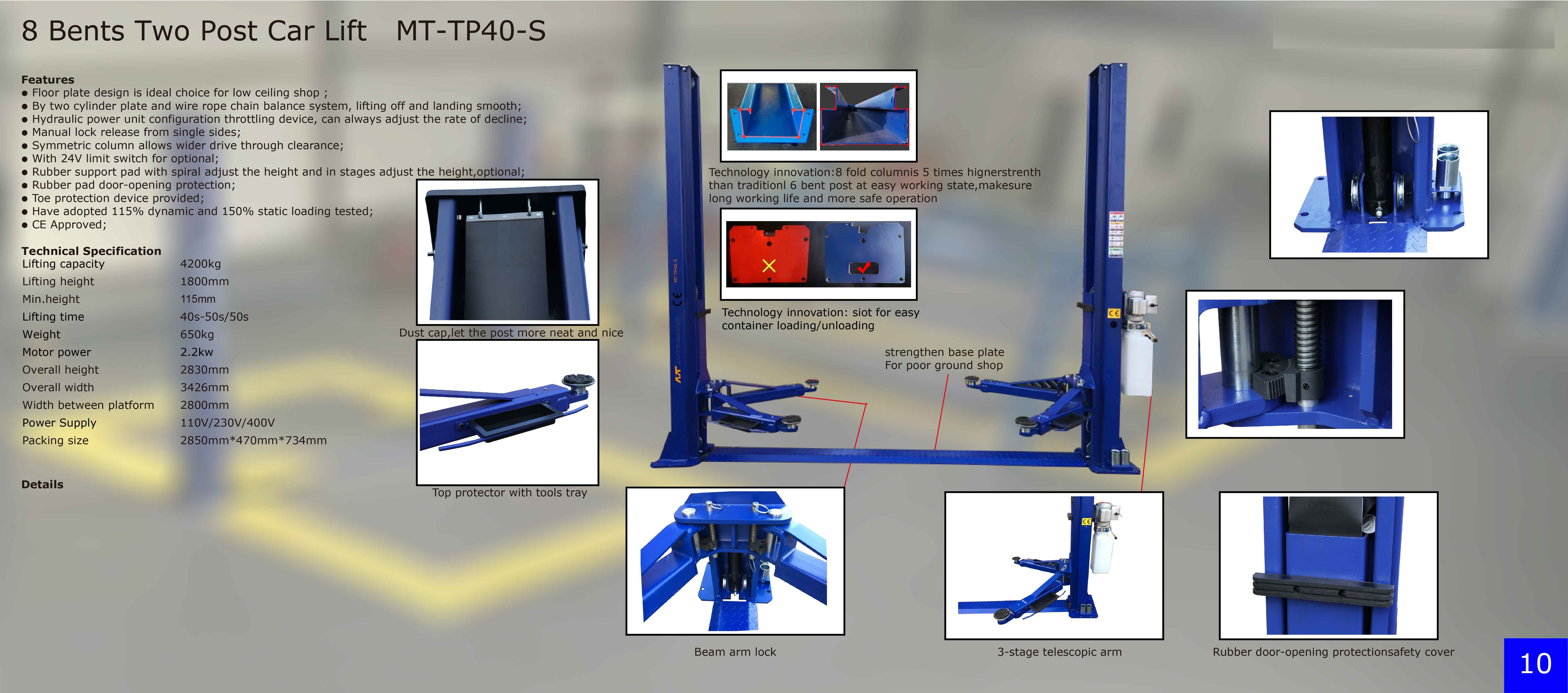

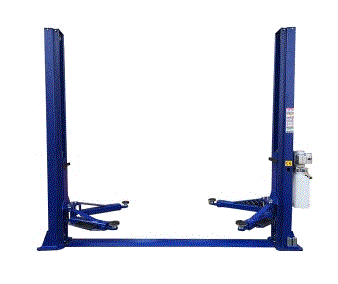

8 bend two post car lift

Product Name:

8 bend two post car lift

No. :

FST-40S

Product Description:

Features

: Floor plate design is ideal choice for low ceiling shop ;
:By two cylinder plate and wire rope chain balance system, lifting off and landing smooth;
:Hydraulic power unit configuration throttling device, can always adjust the rate of decline;

: Manual lock release from two sides;
: With 24V limit switch for optional;
: Rubber support pad with spiral adjust the height and in stages adjust the height, optional;
: Rubber pad door-opening protection;
: Toe protection device provided;
: Have adopted 115% dynamic and 150% static loading tested;
: CE Approved;

Technical Specification

Lifting capacity	4200kg
Minimum height	115mm
Overall height	2830mm
Overall width	3426mm
Lifting time	40-50s/50s
Motor power	2.2kw
Lifting height	1800mm
Weight	650kg
Power supply	110V/230V/400V
Width between columns	2820mm
Packing size	2850mm470mm734mm
