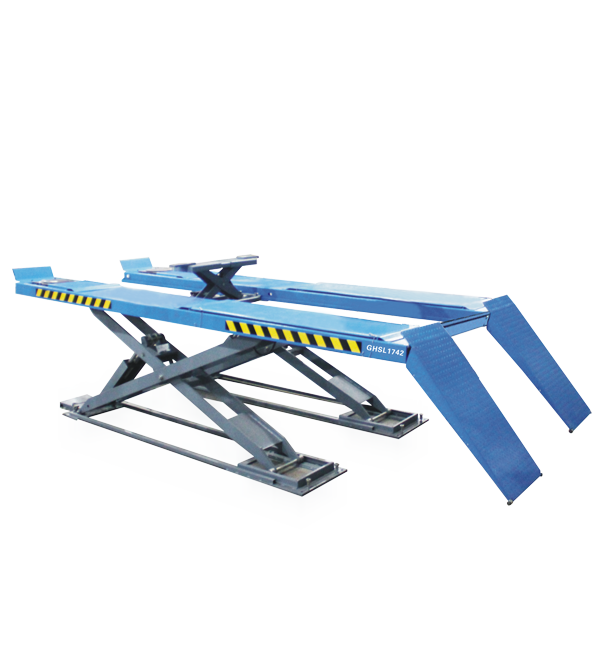

super low large sciissor lift

Product Name:

super low large sciissor lift

No. :

DJY-5

Product Description:

Feature:

Super low profile and perfect for ground mounted;

Suitable for any positioning turn table;

Equipped with safety lock, makes the run way more stable ,and more safety operating;

Equipped with second lifting jack,which equipped with telescopic sliding beam and bracket.

Technical specification :

Rating capacity：3500/4000kg

Runway length：4200/4500mm

Runway Width：635/635mm

Max. Lifting height：1700/1700mm

Min.height：190/190mmLi

fting time：60s

Ack capacity：2500kg

Central jack raised height：450mm

Motor power：2.2kw

Power supply：380V/415V 3phase

Air supply：6~8Kg/cm2

Packing size：4600/4900*650*700mm

Weight:2167/2277kg

9 units can be loaded into one 20”container
